Plastic King Staircase

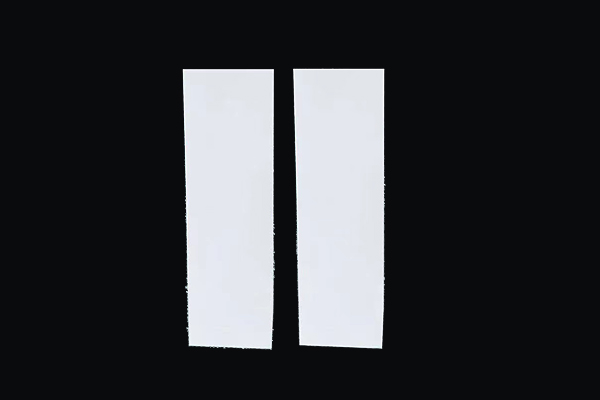

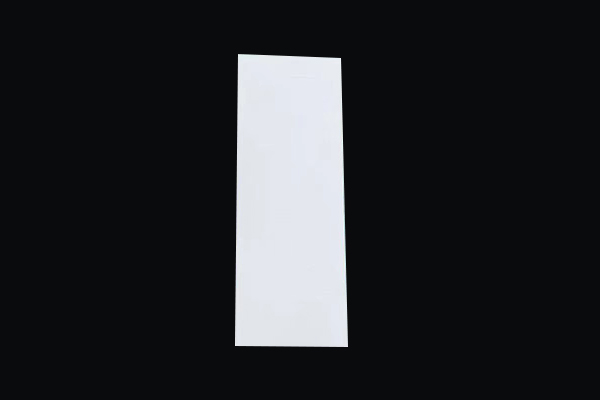

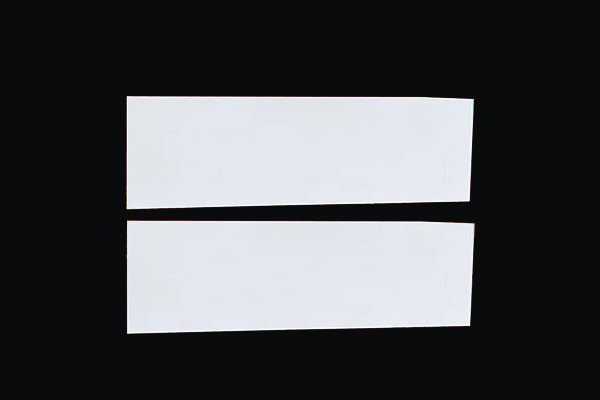

Staircase board manufactured by molding method with PTFE suspension
resin. PTFE has the best chemical resistance among all known plastics.It
has the lowest friction coefficient of any known solid material,it can
be used from-180℃~+260℃under no load

13077881871

Product Features

Excellent resistance to high and low temperatures (between -70 ℃ for low temperatures, 260 ℃ for high temperatures, and up to 300 ° C for intermittent use)。

High intensity; Both soft and tough, can be cut and processed。

Good acid and alkali resistance and chemical corrosion resistance; Oil resistant, waterproof [washable].

Heat and climate aging resistance, as well as resistance to ozone, oxygen, light, etc。

High insulation performance, dielectric constant of 3-3.2, breakdown voltage of 20-50kv/mm。

Product Details

I、 Main parameter：

Technical Data

Unit

Parameter

Apparent density

g/cm³

2.10~2.30

Tensile strength(min)

MPa

15.0

Elongation at break(min)

150

Dielectric strength(min)

KV/mm

II、Specifications

Length(mm)×Width(mm)

Max

Tolerance

600x600

2~600

0~10%

1000x1000

2~120

0~10%

1200x1200 1500×1500

2~120

0~10%

1000×2000 2000×2000

2~120

0~10%

III、 Applications：

Corrosion resistant lining materials and sealing linings,supporting sliders,guide rails,electrical insulation parts.

application area

Areas of application

Shipbuilding

In order to achieve lightweighting of automobiles, effectively reduce costs and fuel consumption rates, major automobile companies generally adopt optimization design methods to design cars, making the materials used for large car coverings thinner and thinner. To solve the problems of insufficient local strength and stiffness caused by this, various reinforcement materials have been developed and widely used in various types of automobiles.

Steel smelting

Rail Transit

Aerospace field

thermal power

Machinery manufacturing

building

car

Sound barrier application
