Teflon board

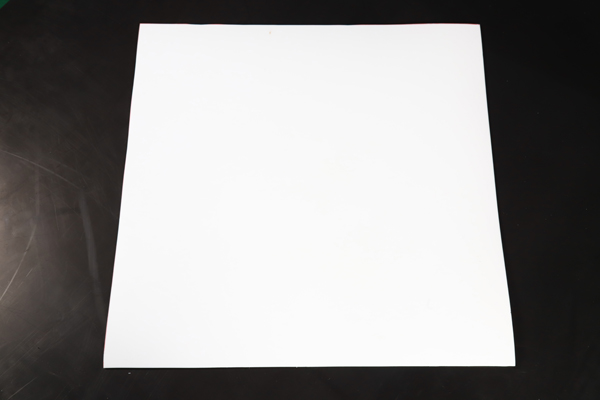

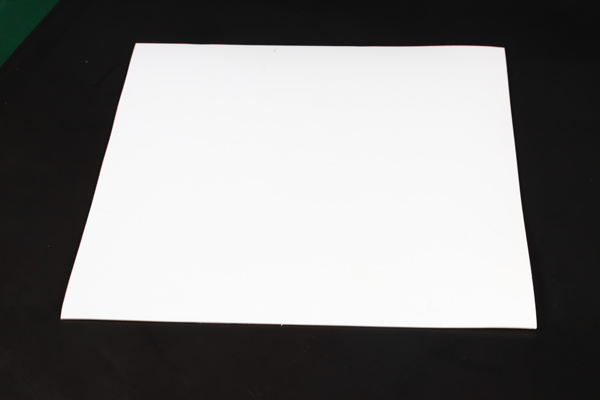

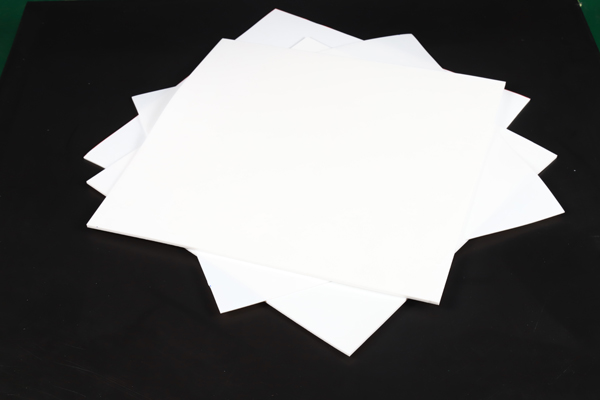

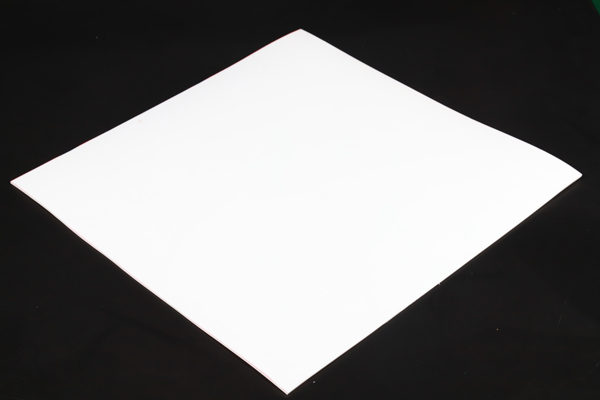

PTFE molded sheet is manufactured by molding method with PTFE suspension resin. PTFE has the best chemical resistance among all known plastics.It has the lowest friction coefficient of any known solid  material,it can be used from-180℃~+260℃under no load



13077881871
Product Features
Product Features

01

Excellent resistance to high and low temperatures (between -70 ℃ for low temperatures, 260 ℃ for high temperatures, and up to 300 ° C for intermittent use)。

02

High intensity; Both soft and tough, can be cut and processed。

03

Good acid and alkali resistance and chemical corrosion resistance; Oil resistant, waterproof [washable].

04

Heat and climate aging resistance, as well as resistance to ozone, oxygen, light, etc。

05

High insulation performance, dielectric constant of 3-3.2, breakdown voltage of 20-50kv/mm。
Product Details
Product Details

 I、 Main parameter：


Technical Data  Unit Parameter
Apparent density g/cm³ 2.10~2.30
Tensile strength(min)   MPa 15.0
Elongation at break(min) % 150
 Dielectric strength(min) KV/mm 10


II、Specifications


Length(mm)×Width(mm)
Max Tolerance
600x600 2~600 0~10%
1000x1000 2~120 0~10%
1200x1200  1500×1500 2~120 0~10%
1000×2000  2000×2000 2~120 0~10%


III、 Applications：

Corrosion resistant lining materials and sealing linings,supporting sliders,guide rails,electrical insulation parts.

application area
Areas of application
Shipbuilding
In order to achieve lightweighting of automobiles, effectively reduce costs and fuel consumption rates, major automobile companies generally adopt optimization design methods to design cars, making the materials used for large car coverings thinner and thinner. To solve the problems of insufficient local strength and stiffness caused by this, various reinforcement materials have been developed and widely used in various types of automobiles.
Steel smelting
In order to achieve lightweighting of automobiles, effectively reduce costs and fuel consumption rates, major automobile companies generally adopt optimization design methods to design cars, making the materials used for large car coverings thinner and thinner. To solve the problems of insufficient local strength and stiffness caused by this, various reinforcement materials have been developed and widely used in various types of automobiles.
Rail Transit
Aerospace field
thermal power
Machinery manufacturing
building
car
Sound barrier application
