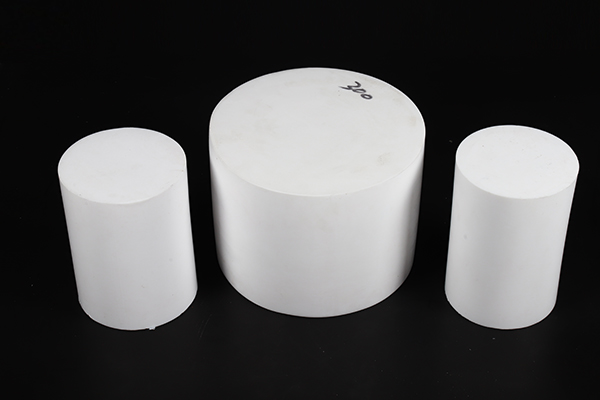

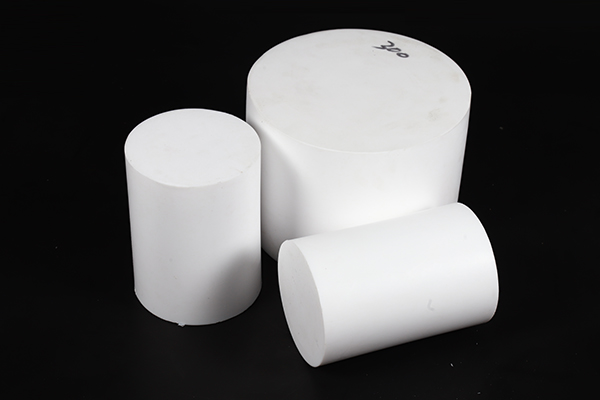

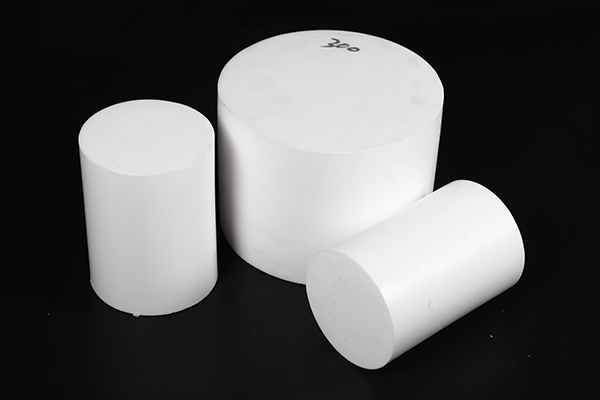

Plastic King Molded Rod

Our company specializes in the production, research, development, and self production and sales of Changyong Ying brand polytetrafluoroethylene molded rods! Polytetrafluoroethylene molded rod is made by molding polytetrafluoroethylene resin at room temperature and sintering it.

Purpose: Used to manufacture gasket sealing and lubricating materials for working in various corrosive media, as well as electrical insulation components for use at various frequencies.

Appearance: The PTFE rod should have a uniform texture and the surface should not have cracks, bubbles, delamination, or mechanical damage.

Specification: Diameter 4mm x Length 300mm~Diameter 500mm x Length 600mm

13077881871

Product Features

Excellent resistance to high and low temperatures (between -70 ℃ for low temperatures, 260 ℃ for high temperatures, and up to 300 ° C for intermittent use)。

High intensity; Both soft and tough, can be cut and processed。

Good acid and alkali resistance and chemical corrosion resistance; Oil resistant, waterproof [washable].

Heat and climate aging resistance, as well as resistance to ozone, oxygen, light, etc。

High insulation performance, dielectric constant of 3-3.2, breakdown voltage of 20-50kv/mm。

Product Details

The physical and mechanical properties should meet the requirements in the table below：

Test items

unit

Indicator value

proportion

2.1-2.3

tensile strength

MPa

≥14.0

Elongation at break

≥140

Note:

(1) Bars with a diameter less than 8 millimeters are tested for width, while bars with a diameter greater than 8 millimeters are generally not tested;

(2) This standard complies with QB/T36261999 Professional Standards of the People's Republic of China.

application area

Areas of application

Shipbuilding

In order to achieve lightweighting of automobiles, effectively reduce costs and fuel consumption rates, major automobile companies generally adopt optimization design methods to design cars, making the materials used for large car coverings thinner and thinner. To solve the problems of insufficient local strength and stiffness caused by this, various reinforcement materials have been developed and widely used in various types of automobiles.

Steel smelting

Rail Transit

Aerospace field

thermal power

Machinery manufacturing

building

car

Sound barrier application
